產品信息

7ZL是一款小型、小尺寸、高性能LVDS輸出振蕩器產品。在-40℃~+85℃的工作溫度范圍及1.8V/2.5V/3.3V的工作條件下頻率穩定度為±50ppm，具有0.5pS的低相位抖動。適用于以太網、光纖通道及網絡通信設備等應用場景中。

**Electrical Specifications**
Item		Symb.	Min.	Typ.	Max.	Unit	Notes
Frequency Range		Freq.	90.000		160.000	MHz
Standard Frequency		Freq.	100.000 ,106.250 ,125.000 148.500 ,150.000 ,155.520 156.250			MHz	Contact SCTF for frequencies not listed
Output			LVDS
Operating Temperature		T_use	-20		+70	℃
Operating Temperature		T_use	-40		+85	℃
Storage Temperature Range		T_stg	-55		+125	℃
Supply Voltage		Vdd	1.8 , 2.5 , 3.3			V	±5% max.
Output Load		L_LVDS		100		Ω
Current Consumption		Icc			30	mA	90MHz ≤ Freq. ＜ 125MHz
Current Consumption		Icc			40	mA	125MHz ≤ Freq. ≤ 160MHz
Duty Cycle		SYM	45		55	%
Rise / Fall Time		TR / TF			1	nS	20% Vdd to 80% Level
Start-up Time		T_str			10	mS	To 90% of Final Amplitude
High output voltage		VOH			1.6	V
Low output voltage		VOL	0.9			V
Enable Voltage High (Logic 1)		VIH	0.7Vdd			V	Pin 1 Tri-state Outputs will be enable if OE is Logic 1 or open; Outputs will be disable if OE is Logic 0.
Enable Voltage Low (Logic 0)		VIL			0.3Vdd	V
RMS Phase Jitter		TRPJ			0.5	pSec	Period Jitter(12KHz-20MHz)
Phase Noise@156.25MHz	100 Hz		-90			dBc/Hz
	1 KHz		-120			dBc/Hz
	10 KHz		-140			dBc/Hz
Aging		f_age			±3	ppm	1st. Year at 25℃

**Frequency Stability & Operating Temperature Range**
Operating Temperature Range	Frequency Stability
Operating Temperature Range	±20ppm	±25ppm	±30ppm	±50ppm
-20℃ to +70℃	▲	★	★	★
-40℃ to +85℃		▲	★	★
★：Available ▲：Conditional All condition*：Include 25℃ tolerance, operating temperature range , input voltage change,aging, load change.

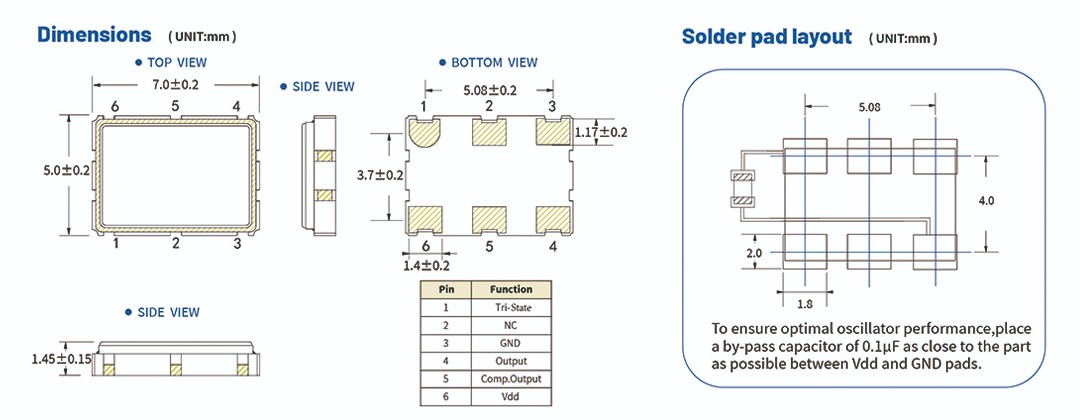

**Mechanical Dimensions**

**Selection Guide**
Description of Requirement
選擇需要的封裝規格及產品系列： 7.0×5.0mm；7ZL Series 選擇需要的頻率： 100.000MHz 選擇需要的工作電壓： 3.3V 選擇需要的輸出模式： LVDS 選擇需要的頻率精度（at 25℃）： ±20ppm 選擇需要的工作溫度范圍： -40℃~+85℃ 選擇需要的頻率&溫度特性： ±30ppm 您需要的產品是： 7ZL Series 100.000MHz 3.3V LVDS ±20ppm@25℃ ±30ppm@-40~+85℃
